EU Framework 5 Project LCOS4LCOS
Partners:
Thomson (F), Merck (G), Thales LCD (F), ATMEL (F), IMEC (B), UCL
(GB)
Aims:
To design a low cost projection TV display including an innovative
high illumination optical engine based on a single Liquid Crystal
on Silicon (LCOS) chip.
By combining the director modelling, optical modelling and a commercial
ray tracing simulation package the optical properties of the whole
illumination, projection and optical engine system can be predicted.

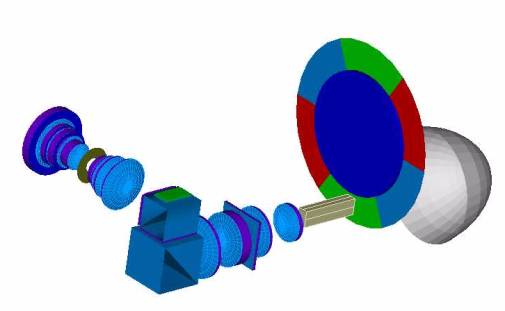

Fig. 1: Optical System

Fig. 2: Optical modelling of the reflectance from
a corner between 10 micrometre pitch pixels in a pixel-by-pixel
chequerboard pattern

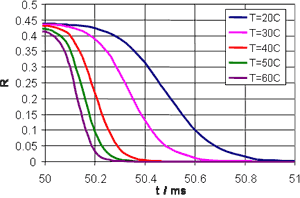

Fig. 3: Effect of Temperature on Switching

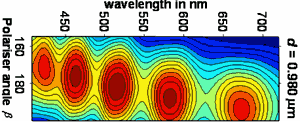

Fig. 4: Optical reflectance of a pixel in terms
of wavelength and polariser angle. Results used for testing cell
thickness.

Fig.5: Pixel Locations on Array

Contrast Ratio 948:1 |
|
Contrast Ratio 985:1 |

Contrast Ratio 839:1 |
|
Contrast Ratio 924:1 |
Fig. 6: Angular distribution of light reflected
from the different areas of the 1” display.
Overall Contrast Ratio 925:1
